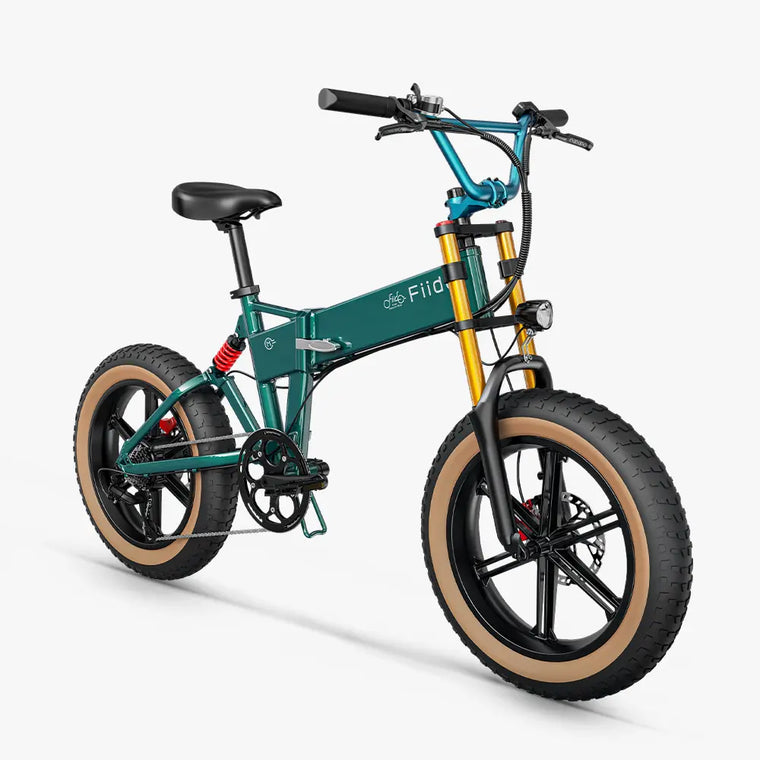

Fiido M1 Pro Fat Tire Electric Bike

Name: Fiido M1 Pro Fat Tire Electric Bike
Brand: fiido
SKU: M1PRO-128B-EU
Price: 999.0 EUR
Availability: InStock
Rating: 4.92 (592 reviews)

The most cost-effective fat tire ebike for off-road adventures.

Spread then drag

Don't ask me again.

Got it

Foldable

Compact Design

Hydraulic Brake

Quick Stop

88km

Long Range

50 N·m

Powerful motor

614.4Wh

Removable Battery

Integrated Hub

0-Maintenance

holiday season

Fiido M1 Pro Fat Tire Electric Bike

592 reviews

The most cost-effective fat tire ebike for off-road adventures.

€999,00 €1.099,00 Save €100,00

Version: M1 Pro 2024 | 4'11(150cm)-6'7 (200cm)

Variant

Accessories

Fiido Black Handlebar Bag

€30,00

€35,00

Fiido phone holder

€22,00

Fiido Helmet

€66,00

add 0

&

Save 0%

Quantity:

Free Shipping

2-Year Warranty

30-Day Return

Foldable

Compact Design

Hydraulic Brake

Quick Stop

88km

Long Range

50 N·m

Powerful motor

614.4Wh

Removable Battery

Integrated Hub

0-Maintenance

Features at a Glance

Performance

Range: Up to 88km

Gears: 7-speed

Tires: 20" x 4.0 fat tires

Payload: 120kg

Suspension: Front and rear suspension forks

Brakes: Hydraulic disc brakes

User-Friendly Features

Folding: Foldable frame

Battery: Removable

Waterproof: IP54 full-bike

Rider Fit

Height: 150cm - 200cm

Seat: Adjustable

What's In The Box?

Electric bike*1

Manual*1

Charger*1

Rear Reflector*1

Open Spanner

Kickstand*1

Front Wheel Quick Release*1

Headlight*1

Fender*1

Hex Wench*1

Keys*1

Rear Rack*1

FAQ

1. The bike's weight with and without battery?

26.8 kg with battery, 23.73 kg without. ( 3.07 kg battery.)
2. Can I ride smoothly without power?

Yes. Feels like a traditional bicycle when off.
3. How long is the warranty?

24 months on the whole ebike (excluding consumable parts). See Warranty Policy for more info.
4. Any test ride locations nearby? Any service centers nearby?

Yes, find them here.
5. What certifications does it have? Is it compliant with EU regulations?

CE，UN38.3 and MSDS. Battery meets EU standard.
6. Can I install a child seat? a bike trailer?

Yes. Child seat should be 17-20 cm wide, child’s weight ≤ 25kg. Consider brands like Bobike, Thule, and OGK.
Trailer compatibility: 11.8mm motor axle fits a 12.5-13mm hitch hole (≤5mm thick). For satety, ensure trailer wheel diameter < bike's.
7. Throttle available? Can it be disabled?

Both yes. Top speed 25 km/h on throttle. Use the app or unplug the cable to disable the throttle.
8. How to pay by installment?

Select Klarna at checkout. Split into four or pay in 30 days, both interest-free. Monthly also available. Up to €3000 per transaction.
More FAQs

Customer service: service@fiido.com;
Tel: (852)56216918, 9AM - 10PM (GMT+8), Mon to Fri

Overview

Spec

Reviews

Buy Now

The daring e-bike for adventurers, delivering robust rides and intuitive handling.

Fiido M1 PRO 2024 Story

Fiido is determined to bring ebikes into the all-terrain transportation age. The M1 Pro masters both urban commutes and challenging mountain paths with an integrated design, intelligent control system, and extensive connectivity. This model is undeniably the apex of folding fat tire electric bikes. Fiido is leading smart mobility, making each ride joyful and efficient, with an unwavering focus on customer needs.

Features

Fat Tires for All Terrains

Our ultra-wide 20" x 4.0 fat tires are ideal for tackling any terrain with ease, ensuring a smooth and confident ride on rugged trails or concealed roads.

Mighty Motor, Versatile Gearbox

The robust motor combined with a versatile 7-speed gearbox empowers the M1 Pro to conquer diverse terrains with ease.

Full Absorbers

Fiido's advanced front and rear shock absorbers ensure you enjoy the utmost comfort.

Foldable Frame

Take it with you to any destination of your choice and unfold your adventures.

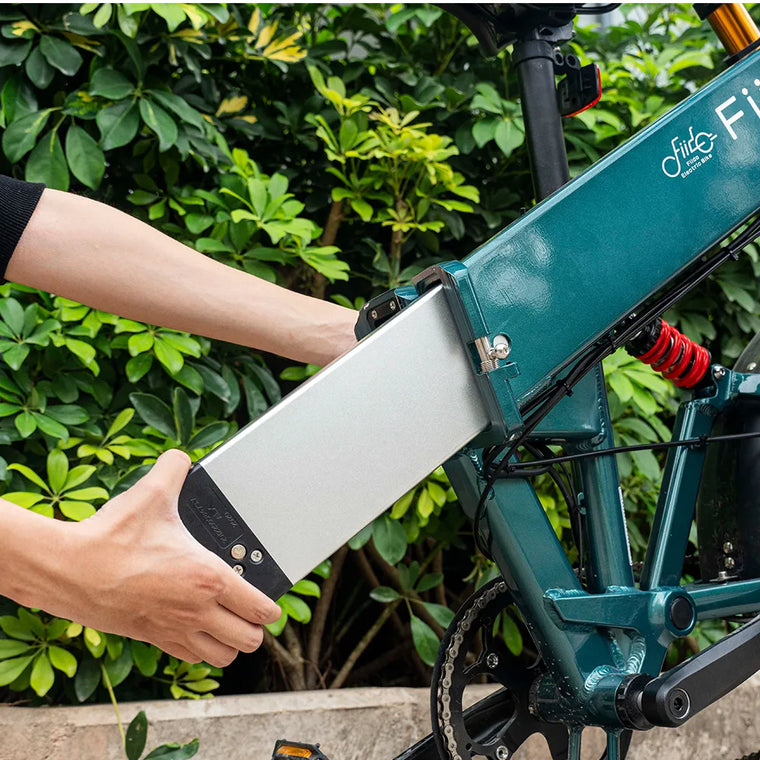

Removable Battery

Take your battery with you for charging anytime, anywhere.

Versatile. Compact. Unstoppable.

Explore more

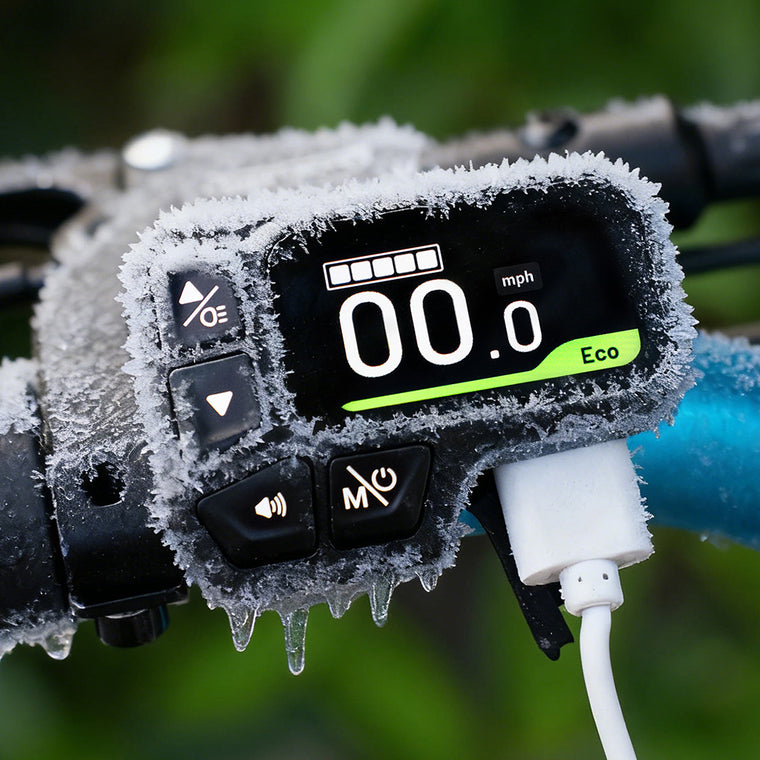

Smart display connects with smartwatch, enhances every ride.

The luggage rack allows you to carry your essentials easily and efficiently.

Rear brake light increases your visibility, improving road safety.

Extendable head tube for adjustable height and comfort.

Ergonomic Vole Saddle ensure a comfortable experience during long runs.

800 recharges—this battery is built to last.

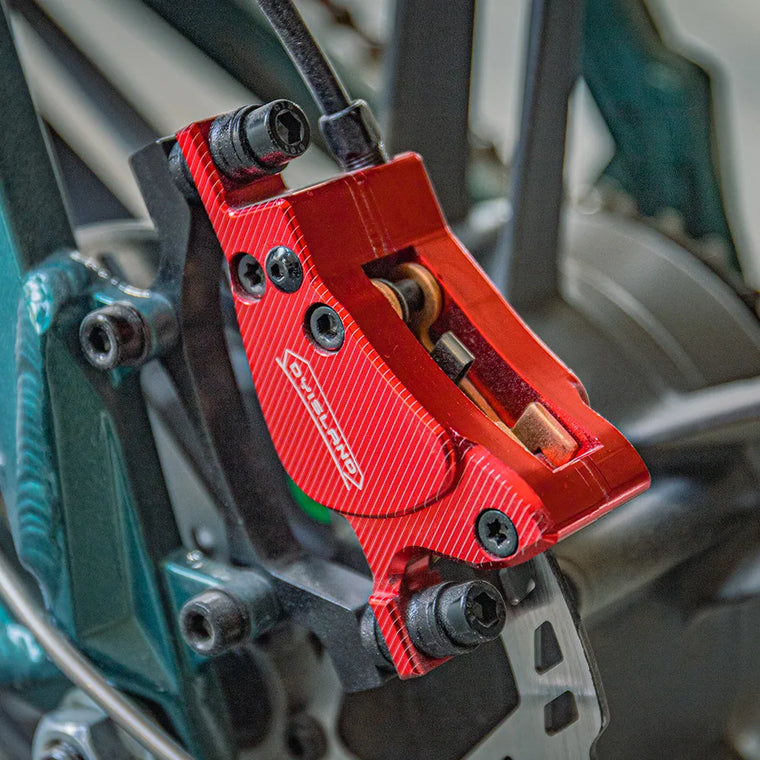

Hydraulic braking system ensures reliable stopping.

Durable one-piece wheel, maintenance-free.

Adjustable stem customizes for a perfect fit.

Shimano 7-speed gears navigate any terrain with precision.

Added brake tail light increases safety and visibility.

Real-world Range Testing

Full Throttle

Preset

Avg. Spd.

24.74

km/h

Range:

58.72

km

Spd. Unlocked

Avg. Spd.

33.7

km/h

Range:

31.85

km

Pedal Assist

ECO

Avg. Spd.

19.27

km/h

Range:

88.79

km

Normal

Avg. Spd.

21.3

km/h

Range:

73.08

km

Sport

Avg. Spd.

23.28

km/h

Range:

62.56

km

（The results above were obtained with a rider weighing 75kg, in a flat road environment at 32℃. Please note that the cruising range can vary depending on riding conditions; refer to actual usage for more accurate information)

The Brand

We listen to our customers, whose insights flow into our lab and merge with with our creativity and expertise. Fiido's mission is to create practical and artistic e-bikes that truly respond to customer needs. By optimizing R&D and supply chains, we also make e-bikes more affordable. This commitment has made us one of the fastest growing e-bike brands in the world.

Specifications

DETAILS

Model Name

M1 Pro 2024 Version

Model Code

M1 Pro 2024 Version

Net Weight

26.8 kg

Payload

120 kg
FRAMESET

Frame

20-inch aluminum alloy frame

Fork

Aluminum alloy hydraulic shock-absorbing front fork (suspension travel 60mm) with 135mm opening width

Headset

Aluminum alloy bearing limit headset
E-SYSTEM

Drive Unit

500W integrated wheel brushless geared motor

Battery

DMEGC 614.4Wh

Charger

48V2A

Display

LCD 1.47 inch
DRIVETRAIN

Rear Derailleur

SHIMANO TY300D

Shifters

SHIMANO TX50

Chain

KMC Z7

Crank

Aluminum alloy 52T

Rear Cogs

SHIMANO TZ500 7S (14-28T)

Sensor

12-magnet cadence sensor
BRAKES

Brakes

Dual-piston hydraulic disc brake with power cut-off

Brake Levers

Aluminum alloy three-finger brake lever
WHEELS

Front Hub

Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm)

Rims

/

Spokes

/

Tires

CST 20*4.0
COMPONENTS

Handlebar

Aluminum alloy (Length: 560mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)

Stem

/

Grips

TPR non-slip handle grip (Length: about 130mm)

Saddle

VELO vacuum full-fit saddle

Seatpost

Aluminum alloy clamp head seatpost (Length: 400mm;Diameter: 33.9mm)

Geometry

All measurements provided in mm unless otherwise noted.

Rider heights	4'11(150cm)-6'7 (200cm)
Wheel size	ST 20*4.0
A—Seat tube	425
B—Seat tube angle	75°
C—Head tube	130
D—Head angle	74.5°
E—Top tube length	648
F—Standover height	708
G—BB drop	-40
H—Rear Center	505
I—Wheelbase	1155
J—Reach	474
K—Stack	504
L— Rear Suspension Length	125
M— Maximum seat height	1060
N— Minimum seat height	830
O—Maximum Handlebar height	1410
P—Minimum Handlebar height	1110
Q—Handlebar length	580
R—Total length	1750
S—Folding length	1010
T—Folding height	770
U—Steerer Tube Length	148
V—Steerer Tube Outer Diameter	28.6
W—Steerer Tube Inner Diameter	25.4

FAQ

Return and Refund

Can I return the e-bike if I’m not satisfied?

Yes. You can return the e-bike to the location provided by our after-sales customer service team. Refunds will be issued as long as the e-bike is returned within 30 days of purchase, unused, and in its original packaging.

Who is responsible for the return shipping costs?

If the return is due to a product defect, we will cover the shipping costs. Otherwise, the customer will be responsible for the return shipping fees.

How long will it take to receive my refund?

Refund processing times depend on the order status:

Before shipment (no tracking number issued): Refunds are processed within 3-5 business days.

After shipment (tracking number issued): Refunds will be processed within 7-10 business days once the returned items are received at our location.

Order Processing and Delivery

How long does it take to process and ship my order?

Orders for in-stock e-bikes are processed within 3-5 business days. Once shipped, delivery typically takes 5-10 days depending on your location. Overall, you can expect to receive your e-bike within 8-15 days.

How can I track my order?

Once your order ships, you’ll receive an email with tracking information to monitor its progress.

Repair and Warranty

What should I do if my e-bike needs repair?

If your e-bike requires repair, please contact our customer service team. We will guide you through the repair or replacement process. Our team specializes in after-sales service in the EU.

What is the warranty period for the e-bike?

We offer the following warranty coverage:

- 36 months on the frame.

- 24 months on the whole ebike (excluding consumable parts)

See Warranty Policy for more info.

Product Details

Is the display easy to replace?

Yes, modular design allows quick replacement within 10 minutes.

What does the app do? How does the bike connect to the app?

You can start the bike, track data, and connect with other riders with the app. Download the "Fiido" app and pair via Bluetooth.

Which factors contribute to the riding range?

Riding range is influenced by assist mode, terrain, wind conditions, temperature, surface type, traffic stops, rider's weight, load, and tire pressure etc.

What is the top speed?

Pre-set speed is 25 km/h.

What's In The Box?

Electric bike*1

Manual*1

Charger*1

Rear Reflector*1

Open Spanner

Kickstand*1

Front Wheel Quick Release*1

Headlight*1

Fender*1

Hex Wench*1

Keys*1

Rear Rack*1
